IEC 60068-2-6:2008 Vibration Shaker System with 20KN Vibration Force and 100g Acceleration for High Frequency Testing

1
MOQ
$26,890
価格
IEC 60068-2-6:2008 Vibration Shaker System with 20KN Vibration Force and 100g Acceleration for High Frequency Testing
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
振動方向: 垂直振動
振動力: 20kn
制御方法: コンピューター制御
加速度: 100g
周波数範囲: 3〜3500Hz
可動コイル重量: 30kg
パワータイプ: 電子
定格正弦力: 10000N（ES-10）、20000N（ES-20）、30000N（ES-30）、40000N（ES-40）
周波数範囲: 3-3000Hz（ES-10、ES-20）、3-2800Hz（ES-30、ES-40）
定数加速: 1000m/s2
定格速度: 1.8 m/s
定数移動量: 70mm（ES-10）、80mm（ES-20）、11100mm（ES-30）、100mm（ES-40）
最大負荷: 270kg（ES-10）、300kg（ES-20）、450kg（ES-30）、500kg（ES-40）
可動コイル重量: 14kg（ES-10）、30kg（ES-20）、40kg（ES-30）、50kg（ES-40）
コイルの寸法の移動: φ240mm（ES-10）、φ320mm（ES-20）、φ450mm（ES-30、ES-40）
ハイライト:

IEC 60068-2-6:2008 Vibration Shaker System

,

20KN Vibration Force Vibration Shaker System

,

100g Acceleration High Frequency Vibrating Shaker
基本情報
起源の場所: 中国広州
ブランド名: ASLI
モデル番号: ES-20
お支払配送条件
製品の説明

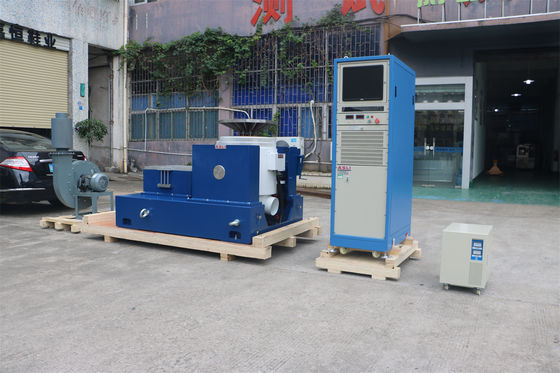

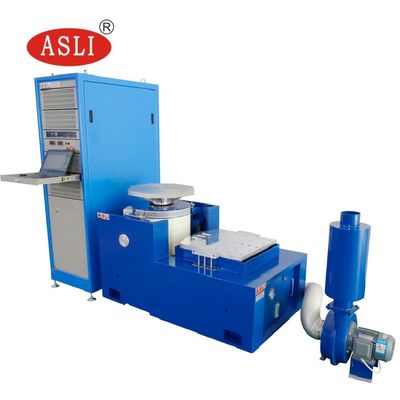

IEC 60068-2-6:2008 Sinusoidal Vibration Test High Frequency Vibrating Shaker
The IEC 60068-2-6:2008 Sinusoidal Vibration Test High Frequency Vibrating Shaker is designed for product vibration and shock environmental testing, environmental stress screening, and reliability testing. This versatile test platform meets various international specifications including IEC, MIL-STD, JIS, and ASTM standards. It is widely used in aerospace, communications, electronics, electrical, and home appliance industries.
IEC 60068-2-6:2008 Vibration Shaker System with 20KN Vibration Force and 100g Acceleration for High Frequency Testing 0 IEC 60068-2-6:2008 Vibration Shaker System with 20KN Vibration Force and 100g Acceleration for High Frequency Testing 1
Specifications
Model ES-10 ES-20 ES-30 ES-40
Rated Sine Force (N) 10000 20000 30000 40000
Frequency Range (Hz) 3-3000 3-3000 3-2800 3-2800
Rated Acceleration (m/s²) 1000 1000 1000 1000
Rated Speed (m/s) 1.8 1.8 1.8 1.8
Rated displacement (p-p) mm 70 80 11100 100
Max. Loading (Kg) 270 300 450 500
Moving coil (Kg) 14 30 40 50
Dimension of Moving coil (mm) Φ240 Φ320 Φ450 Φ450
Product Features
  • Flexible suspension system with straight line guide for strong bearing capacity, excellent guidance performance, and high stability
  • Central load airbag with large static stiffness and small dynamic stiffness for superior dynamic performance
  • Rapid self-examination diagnosis and chain protection for high safety and reliability
  • Air bag isolating and damping device eliminates need for special foundation while reducing vibration transmission
  • Compatible with horizontal and vertical expansion platforms
  • Works with various vibration controllers for simple operation

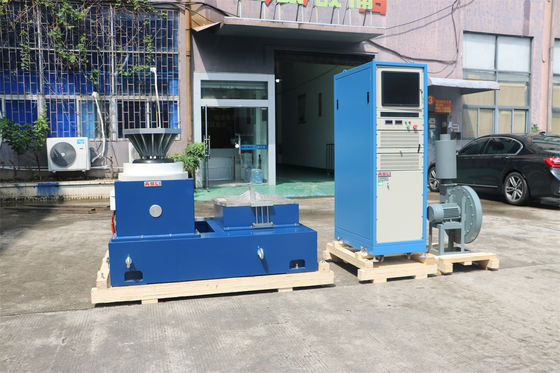

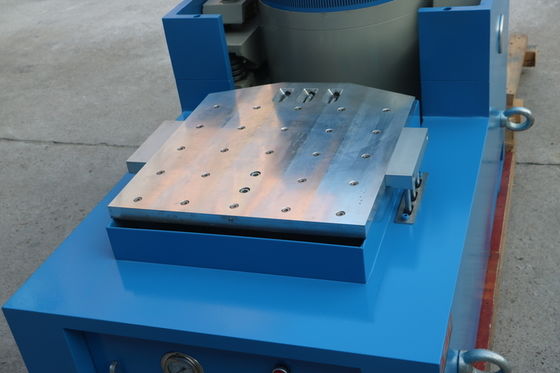

Horizontal Table Features
  • Small loading bench enables higher acceleration and working frequency
  • Integral design with vibration bench for easy installation and adjustment
  • Static pressure track with V-shape design resists slope and bias-loading
  • Built-in oil pump with excellent structure for easy operation
IEC 60068-2-6:2008 Vibration Shaker System with 20KN Vibration Force and 100g Acceleration for High Frequency Testing 2 IEC 60068-2-6:2008 Vibration Shaker System with 20KN Vibration Force and 100g Acceleration for High Frequency Testing 3
Packing & Delivery
IEC 60068-2-6:2008 Vibration Shaker System with 20KN Vibration Force and 100g Acceleration for High Frequency Testing 4
We provide professional, environmentally friendly, and efficient packaging services to ensure the safety of your goods during transportation.

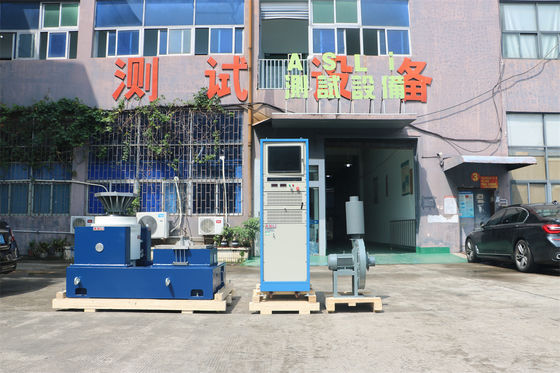

Company Profile
With 28 years of experience, we are a leading manufacturer of simulation environmental testing equipment and mechanical vibration/shock testing machines. Our IEC 60068-2-6:2008 Sinusoidal Vibration Test High Frequency Vibrating Shaker is a star product that has obtained CE certification.
IEC 60068-2-6:2008 Vibration Shaker System with 20KN Vibration Force and 100g Acceleration for High Frequency Testing 5 IEC 60068-2-6:2008 Vibration Shaker System with 20KN Vibration Force and 100g Acceleration for High Frequency Testing 6
Frequently Asked Questions
Q1. What is your terms of packing?
A: PP film first, and then 10mm foam between machine and the case, and outside is standard export plywood case.
Q2. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CIF, DDU, DAP, DDP
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
For more information about our IEC 60068-2-6:2008 Sinusoidal Vibration Test High Frequency Vibrating Shaker, please contact us.
