Name: High Frequency Vertical Electrodynamics Vibration Shaker System with 10000N Sine Force and 5 Hz to 3000Hz Range
Brand: ASLi (China) Test Equipment Co., Ltd
SKU: ES-10
Price: 50,000.00 USD
Availability: InStock

特徴ギャラリー製品の説明見積依頼

特徴

仕様

サインフォース: 10000n

周波数範囲: 3000Hzへの5つのHz

影響の変位: 51mm

可動コイル重量: 14kg

振動波: シヌスランダムショック

振動方向: 縦Vibration+Horizontalの振動

制御方法: 増幅器

評価される任意力: 10000n

定数加速: 1000m/s2

定格速度: 1.8 m/s

最高。ローディング: 270kg

移動コイルの直径: Φ240

一次軸周波数: 3500 Hz

装具の種類: 軽く、高い剛性

静圧トラック: V-shape

ハイライト:

10000N Sine Force Vibration Shaker System

5 Hz to 3000Hz Vibration Test Machine

51mm Impact Displacement Electrodynamics Vibration Shaker

基本情報

起源の場所: 中国広州

ブランド名: ASLI

証明: CE,Third party calibration qualification report

モデル番号: ES-10

お支払配送条件

ギャラリー

High Frequency Vertical Electrodynamics Vibration Shaker System with 10000N Sine Force and 5 Hz to 3000Hz Range

製品の説明

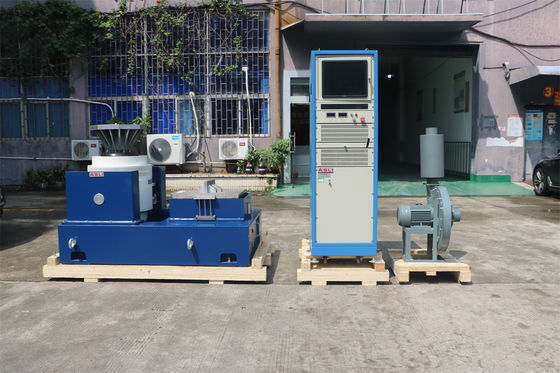

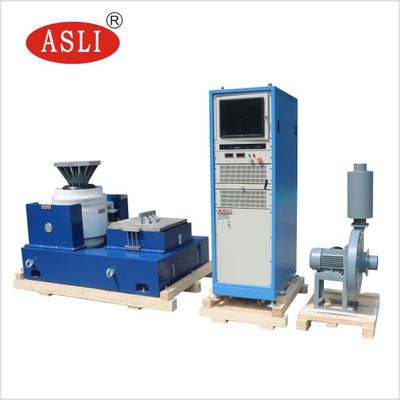

High Frequency Vertical Electrodynamics Vibration Shaker Table Test Machine

This high-performance vibration test machine features a double-magnetic circuit structure with self-generated skeleton action circles, airborne support, roller bearings, and linear guidance. It incorporates advanced trunnion isolation technology to perform X, Y, Z three-axis sinusoidal vibration tests, broadband random vibration tests, classical pulse tests (half-sine, trapezoidal, sawtooth wave), and shock response spectrum tests.

Key Specifications

Frequency range: 5 Hz to 3000 Hz
Test modes: Fixed frequency, sweep back and forth, sine, random, shock
CE Certified for industrial applications

Applications

Widely used in automotive electronics, motor meter assemblies, storage batteries, electric equipment, motors, safety valves, air conditioning compressors, and across defense, aerospace, communications, and electronics industries.

Technical Specifications

Model	Rated Sine Force (N)	Rated Random Force (N)	Frequency Range (Hz)	Rated Acceleration (m/s²)	Rated Speed (m/s)	Rated Displacement (p-p) mm	Max. Loading (Kg)	Moving Coil
ES-3	3000	3000	3-3500	1000	1.6	25	100	Φ150
ES-3a	3000	3000	3-3500	400	1.6	40	120	Φ230
ES-6	6000	6000	3-3500	1000	1.6	25	180	Φ230
ES-6a	6000	6000	3-3500	1000	1.6	51	250	Φ230
ES-10	10000	10000	3-3000	1000	1.8	51	270	Φ240
ES-20	20000	20000	3-3000	1000	1.8	51	300	Φ320
ES-30	30000	30000	3-2800	1000	1.8	51	450	Φ450
ES-40	40000	40000	3-2800	1000	1.8	51	500	Φ450
ES-50	50000	50000	3-2700	1000	1.8	51	750	Φ450

Key Features

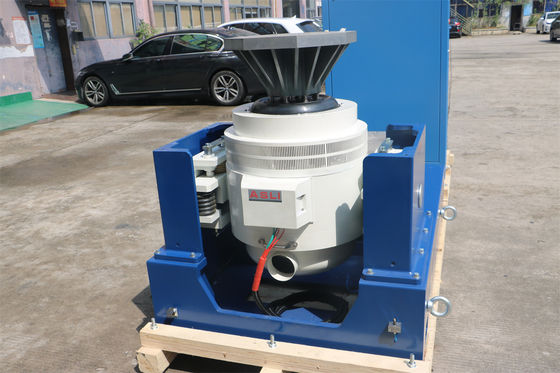

Carefully designed moving coil skeleton with higher first-order axial resonant frequency
Light armature with high stiffness for 3500 Hz frequency operation
Computer-controlled operation with immediate data storage capability
Real-time control chart display
Low resistance, high-performance design for efficiency and cost-effectiveness
High reliability with minimal operational faults

Vertical Expander Option

VT vertical extended-bench with specified clamps features precision-calculated design for optimal performance. Constructed with high-quality materials and workmanship for perfect structure and durability.

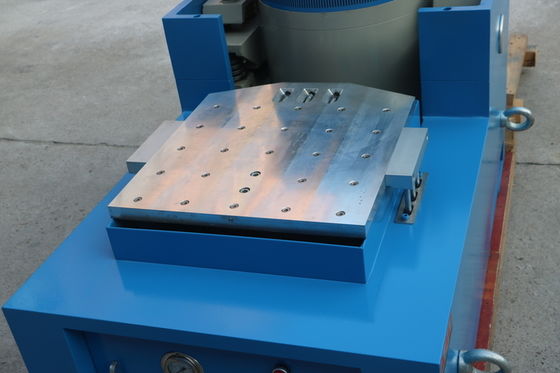

Horizontal Expander Option

Designed for small loading benches to achieve higher acceleration and working frequency, improving overall machine performance. Features static pressure V-shaped track with slope-resistant and bias-loading resistant capacity. Includes built-in oil pump for easy operation.
