ホーム /製品/振動試験機/3 Axis Vibration Direction Electrodynamic Shaker with 100g Acceleration and 6.5kg Moving Coil Weight

3 Axis Vibration Direction Electrodynamic Shaker with 100g Acceleration and 6.5kg Moving Coil Weight

1
MOQ
$23,500
価格
3 Axis Vibration Direction Electrodynamic Shaker with 100g Acceleration and 6.5kg Moving Coil Weight
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
振動力: 6000N
振動方向: 3軸
加速度: 100g
周波数範囲: 3〜3500Hz
可動コイル重量: 6.5kg
定格速度: 1.8m/s
定格正弦力: 6000N
評価される任意力: 6000N
定数加速: 1000m/s²
定数移動量: 25mm
最大負荷: 180kg
コイルの寸法の移動: Φ230mm
パワータイプ: 電子
制御システム: 高度な
データ収集: 統合
ハイライト:

3 Axis Vibration Direction Electrodynamic Shaker

,

100g Acceleration Electrodynamic Shaker

,

6.5kg Moving Coil Weight Vibration Shaker Table
基本情報
起源の場所: 中国広州
ブランド名: ASLI
モデル番号: ES-6
お支払配送条件
製品の説明
High Frequency Mechanical Vibration Shaker Table Solar Vibration Test Chamber
Product Overview
This electrodynamic shaker system provides high-frequency vibration testing for product durability evaluation. Compliant with multiple international standards including ISO, UL, GB, EN, DIN, JIS, CNS, CE, IEC, and BS.
Key Features
  • High Frequency Range: 3-3500Hz capability for comprehensive product testing
  • Precision Control: Robust electrodynamic system with sophisticated control panel
  • Wide Testing Parameters: Broad amplitude and acceleration range settings
  • Industry Versatility: Suitable for automotive, aerospace, electronics, and consumer goods testing
  • Durable Construction: High-quality materials for long-term reliability
  • User-Friendly Interface: Intuitive touchscreen operation
  • Safety Systems: Over-travel protection, emergency stops, and alarms
  • Data Analysis: Integrated logging and reporting capabilities

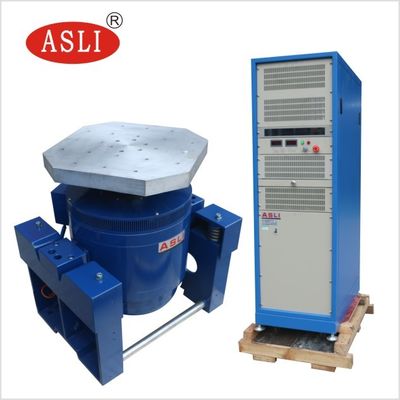

3 Axis Vibration Direction Electrodynamic Shaker with 100g Acceleration and 6.5kg Moving Coil Weight 0
Technical Specifications
Model Rated Sine Force (N) Rated Random Force (N) Frequency Range (Hz) Rated Acceleration (m/s²) Rated Speed (m/s) Rated Displacement (p-p)mm Max. Loading (Kg) Moving Coil (Kg) Dimension of Moving Coil (mm)
ES-6 6000 6000 3-3500 1000 1.6 25 180 6.5 Φ 230
ES-6a 6000 6000 3-3500 1000 1.6 51 250 12 Φ230
ES-10 10000 10000 3-3000 1000 1.8 51 270 14 Φ240
ES-20 20000 20000 3-3000 1000 1.8 51 300 30 Φ320
ES-30 30000 30000 3-2800 1000 1.8 51 450 40 Φ450
ES-40 40000 40000 3-2800 1000 1.8 51 500 50 Φ450
ES-50 50000 50000 3-2700 1000 1.8 51 750 50 Φ450
ES-60 60000 60000 3-2700 1000 1.8 51 750 60 Φ450
ES-100 100000 100000 3-2500 1000 1.8 51 1000 90 Φ450
Additional Features
  • High-quality base material for smooth operation
  • Multiple functions including frequency modulation and programmable amplitude
  • Strong anti-magnetic and anti-interference capabilities
  • Computer-controlled operation with data storage
  • Low resistance, high performance design
  • High reliability with low failure rate
  • 1-year free parts maintenance
  • Customization services available

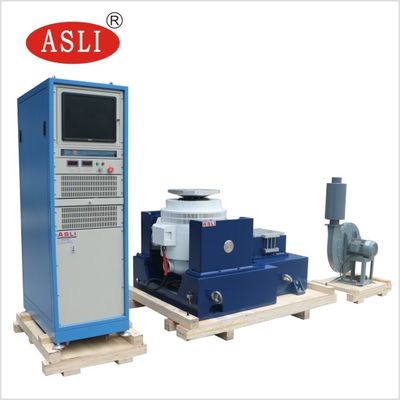

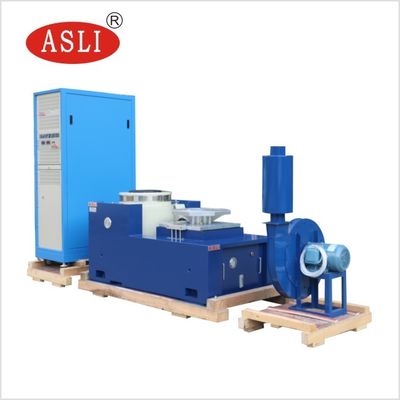

3 Axis Vibration Direction Electrodynamic Shaker with 100g Acceleration and 6.5kg Moving Coil Weight 1 3 Axis Vibration Direction Electrodynamic Shaker with 100g Acceleration and 6.5kg Moving Coil Weight 2
Packaging & Delivery

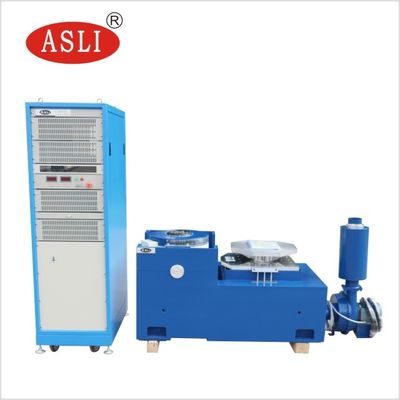

3 Axis Vibration Direction Electrodynamic Shaker with 100g Acceleration and 6.5kg Moving Coil Weight 3
Professional, environmentally friendly packaging ensures safe transportation of your equipment.
Company Profile

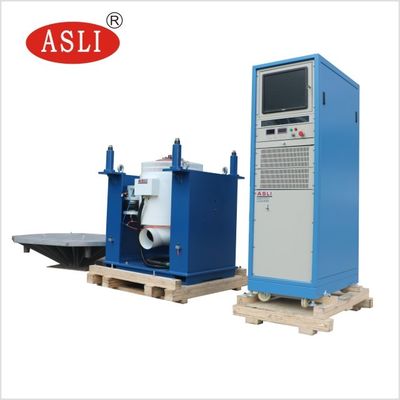

3 Axis Vibration Direction Electrodynamic Shaker with 100g Acceleration and 6.5kg Moving Coil Weight 4
ASLi (China) Test Equipment Co., Ltd is authenticated by national testing centers including the National Measurement and Testing Center. Our precision equipment serves research institutions, quality inspection agencies, and universities worldwide.
Frequently Asked Questions
Q: Are you a manufacturer or trading company?
A: We are both - a factory with integrated trade operations.
Q: Do you offer customization services?
A: Yes, we provide both standard and custom-designed machines to meet your specific requirements.
Q: What is your product warranty?
A: We offer 1-year warranty with lifetime service support.
Q: How is your product quality?
A: Our products comply with ISO, ASTM, GB, MIL-STD and other international standards.
For more information about our High Frequency Mechanical Vibration Shaker Table, please contact us with your inquiry.
