Industrial Vibration Testing Machine with 20KN Force 100g Acceleration and 30kg Moving Coil for Battery Test

1
MOQ
$26,890
価格
Industrial Vibration Testing Machine with 20KN Force 100g Acceleration and 30kg Moving Coil for Battery Test
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
振動方向: 垂直振動
振動力: 20kn
制御方法: コンピューター制御
加速度: 100g
周波数範囲: 3〜3500Hz
可動コイル重量: 30kg
定格正弦力: 10000n
定数加速: 1000m/s2
定格速度: 1.8 m/s
定数移動量: 70 mm
最大負荷: 270kg
コイルの寸法の移動: φ240mm
パワータイプ: 電子
周波数範囲: 3-3000 Hz
可動コイル重量: 14kg
ハイライト:

20KN Vibration Testing Machine

,

100g Vibration Test Machine

,

30kg Electrodynamic Vibration Shaker
基本情報
起源の場所: 中国広州
ブランド名: ASLI
モデル番号: ES-20
お支払配送条件
製品の説明
Competitive Price High Frequency Industrial Vibration Test Machine for Battery Test
This high-frequency industrial vibration test machine is primarily designed for product vibration and shock environmental testing, environmental stress screening, and reliability testing. It serves aerospace, communications, electronics, electrical, and home appliance industries. The platform complies with various test specifications including IEC, MIL-STD, JIS, and ASTM standards.

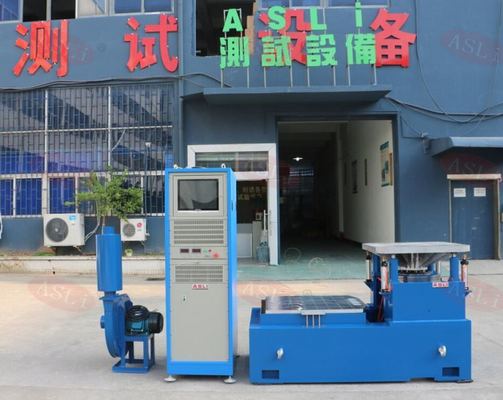

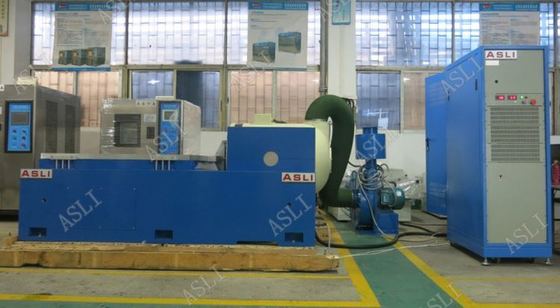

Industrial Vibration Testing Machine with 20KN Force 100g Acceleration and 30kg Moving Coil for Battery Test 0 Industrial Vibration Testing Machine with 20KN Force 100g Acceleration and 30kg Moving Coil for Battery Test 1
Specifications
Model ES-10 ES-20 ES-30 ES-40
Rated Sine Force (N) 10000 20000 30000 40000
Frequency Range (Hz) 3-3000 3-3000 3-2800 3-2800
Rated Acceleration (m/s²) 1000 1000 1000 1000
Rated Speed (m/s) 1.8 1.8 1.8 1.8
Rated displacement (p-p) mm 70 80 11100 100
Max. Loading (Kg) 270 300 450 500
Moving coil (Kg) 14 30 40 50
Dimension of Moving coil (mm) Φ240 Φ320 Φ450 Φ450
Product Features
  • Flexible suspension system with straight line guide provides strong bearing capacity, excellent guidance performance, and high stability
  • Central load airbag features large static stiffness and small dynamic stiffness for superior bearing capacity and dynamic performance
  • Rapid self-examination diagnosis and chain protection ensure high safety and reliability
  • Air bag isolating and damping device eliminates need for special foundation while perfectly reproducing vibration waves and reducing transmission
  • Includes horizontal and vertical expansion platforms for different testing requirements
  • Compatible with various vibration controllers for simple operation
Horizontal Stand Features
  • Small loading bench achieves higher acceleration and working frequency, improving overall machine performance
  • Integrated horizontal bench and vibration bench design offers perfect structure with easy installation and adjustment
  • Static pressure V-shape track provides slope-resistant and bias-loading resistant capacity
  • Built-in oil pump features good structure and easy operation

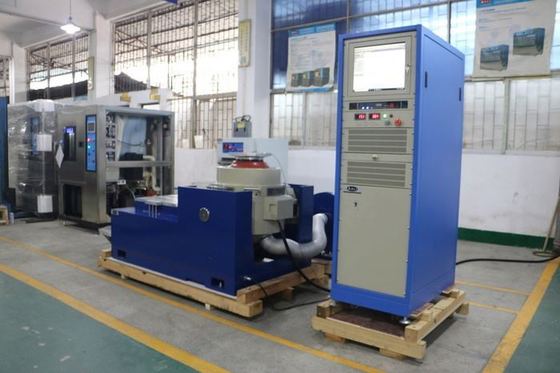

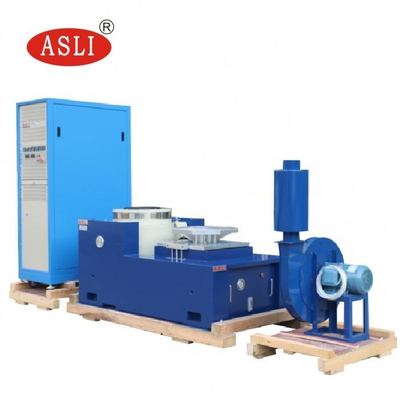

Industrial Vibration Testing Machine with 20KN Force 100g Acceleration and 30kg Moving Coil for Battery Test 2 Industrial Vibration Testing Machine with 20KN Force 100g Acceleration and 30kg Moving Coil for Battery Test 3
Packing & Delivery

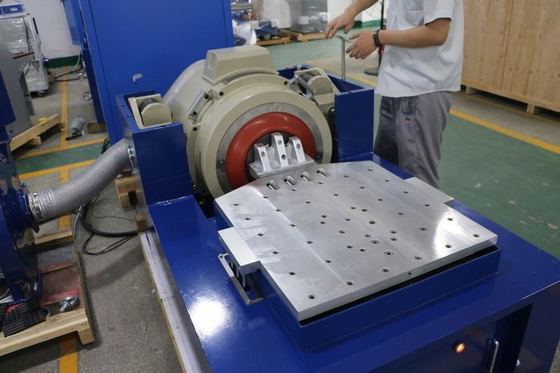

Industrial Vibration Testing Machine with 20KN Force 100g Acceleration and 30kg Moving Coil for Battery Test 4
Professional, environmentally friendly, convenient and efficient packaging services ensure the safety of your goods during transportation.
Company Profile

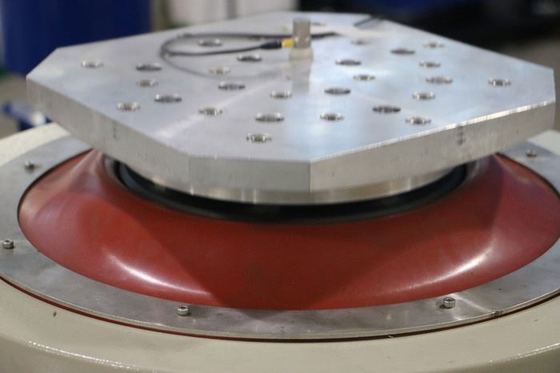

Industrial Vibration Testing Machine with 20KN Force 100g Acceleration and 30kg Moving Coil for Battery Test 5
With 28 years of experience, we specialize in simulation environmental testing equipment and mechanical vibration/shock testing machines. Our 3-axis high frequency vibration testers are star products that have obtained CE certification.
Frequently Asked Questions
Q1. What is your terms of packing?
A: PP film first, and then 10mm foam between machine and the case, and outside is standard export plywood case.
Q2. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CIF, DDU, DAP, DDP
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
For more information about our Competitive Price High Frequency Industrial Vibration Test Machine for Battery Testing, please contact us.
