Motorcycle and Electric Vehicle Vibration Testing Machine with 25mm Impact Displacement 6.5kg Moving Coil Weight and Dia. 230 mm Moving Coil Size

1
MOQ
Motorcycle and Electric Vehicle Vibration Testing Machine with 25mm Impact Displacement 6.5kg Moving Coil Weight and Dia. 230 mm Moving Coil Size
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
周波数範囲: 5Hz～3500Hz
マックス。加速度: 1000m/s2
マックス。スピード: 1.6m/s
影響の変位: 25mm
可動コイル重量: 6.5kg
振動方向: 垂直および水平
振動波: シヌス ランダム ショック
コイルサイズの移動: dia。 230 mm
定格正弦力: 6000N
評価される任意力: 6000N
定数加速: 1000m/s2
定格速度: 1.6m/s
定数移動量: 25mm
最高。ローディング: 180kg
パワータイプ: 電子
ハイライト:

25mm Impact Displacement Vibration Testing Machine

,

6.5kg Moving Coil Weight Electrodynamic Vibration Shaker

,

Dia. 230 mm Moving Coil Size Vibration Test System
基本情報
起源の場所: 中国広州
ブランド名: ASLI
モデル番号: ES-6
お支払配送条件
製品の説明

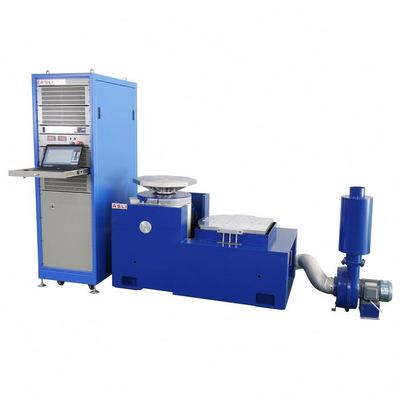

Motorcycle and Electric Vehicle Vibration Test Machine
Product Overview
The Motorcycle and Electric Vehicle Vibration Test Machine performs sinusoidal vibration tests, broadband random vibration tests, and classic pulse tests (half sinusoid, trapezoid, back peak saw tooth) including shock response spectrum tests. It can be integrated with a climate chamber for comprehensive mechanical and environmental condition testing.
This high-frequency vibration test system is extensively used in defense, weapons, aerospace, communications, electronics, appliances, transportation, and household goods industries. Custom configurations are available for multi-environment testing requirements.
Technical Specifications
Model Rated Sine Force (N) Rated Random Force (N) Frequency Range (Hz) Rated Acceleration (m/s²) Rated Speed (m/s) Rated Displacement (p-p)mm Max. Loading (Kg) Moving Coil (Kg) Dimension of Moving Coil (mm)
ES-3 3000 3000 3-3500 1000 1.6 25 100 3.5 Φ150
ES-3a 3000 3000 3-3500 400 1.6 40 120 9 Φ230
ES-6 6000 6000 3-3500 1000 1.6 25 180 6.5 Φ230
ES-6a 6000 6000 3-3500 1000 1.6 51 250 12 Φ230
ES-10 10000 10000 3-3000 1000 1.8 51 270 14 Φ240
ES-20 20000 20000 3-3000 1000 1.8 51 300 30 Φ320
ES-30 30000 30000 3-2800 1000 1.8 51 450 40 Φ450
ES-40 40000 40000 3-2800 1000 1.8 51 500 50 Φ450
ES-50 50000 50000 3-2700 1000 1.8 51 750 50 Φ450

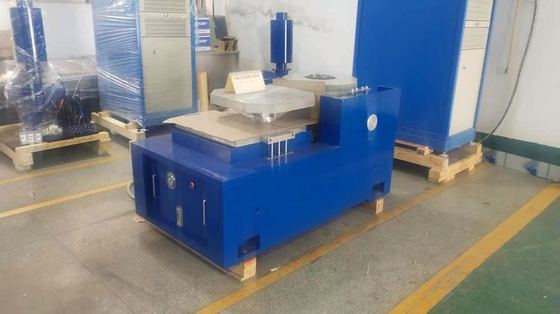

Vertical Expander Features
VT vertical extended-bench with specialized clamps features precision-calculated, elaborate design to deliver optimal performance. Constructed with high-quality materials and superior workmanship for reliable operation.
Motorcycle and Electric Vehicle Vibration Testing Machine with 25mm Impact Displacement 6.5kg Moving Coil Weight and Dia. 230 mm Moving Coil Size 0 Motorcycle and Electric Vehicle Vibration Testing Machine with 25mm Impact Displacement 6.5kg Moving Coil Weight and Dia. 230 mm Moving Coil Size 1

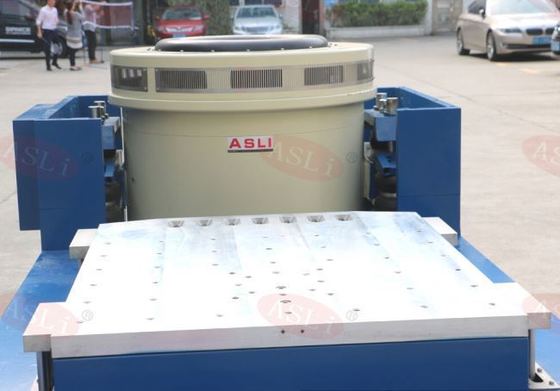

Horizontal Expander Features
Our horizontal expander achieves higher acceleration and working frequency with small loading bench, improving overall machine performance. Key features include:
  • Integral design combining horizontal bench and vibration bench for easy installation and adjustment
  • Static pressure V-shape track with slope-resistant and bias-loading resistant capabilities
  • Built-in oil pump with optimized structure for simplified operation
Motorcycle and Electric Vehicle Vibration Testing Machine with 25mm Impact Displacement 6.5kg Moving Coil Weight and Dia. 230 mm Moving Coil Size 2

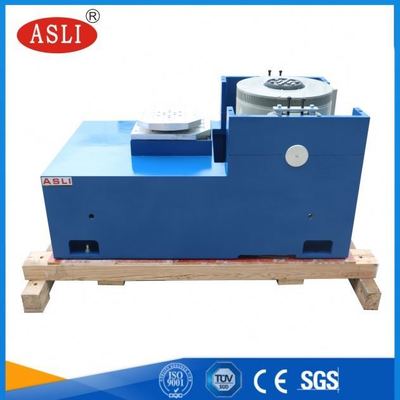

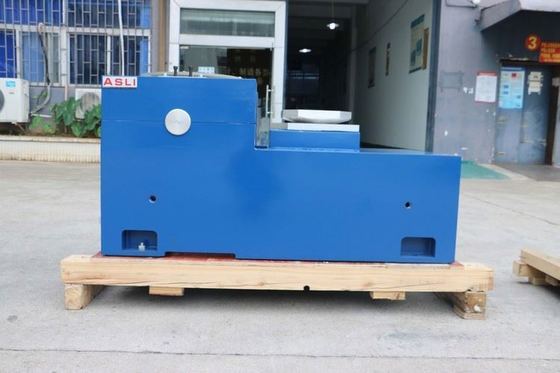

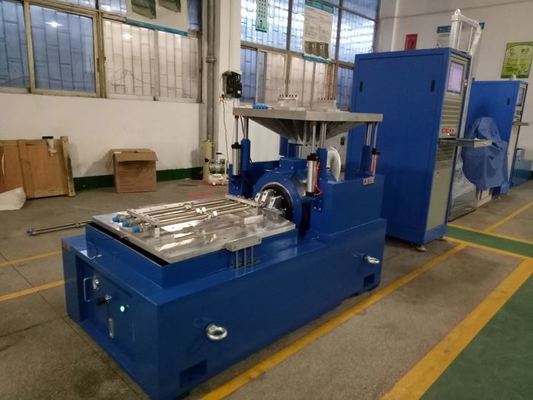

Product Gallery
Motorcycle and Electric Vehicle Vibration Testing Machine with 25mm Impact Displacement 6.5kg Moving Coil Weight and Dia. 230 mm Moving Coil Size 3 Motorcycle and Electric Vehicle Vibration Testing Machine with 25mm Impact Displacement 6.5kg Moving Coil Weight and Dia. 230 mm Moving Coil Size 4 Motorcycle and Electric Vehicle Vibration Testing Machine with 25mm Impact Displacement 6.5kg Moving Coil Weight and Dia. 230 mm Moving Coil Size 5 Motorcycle and Electric Vehicle Vibration Testing Machine with 25mm Impact Displacement 6.5kg Moving Coil Weight and Dia. 230 mm Moving Coil Size 6 Motorcycle and Electric Vehicle Vibration Testing Machine with 25mm Impact Displacement 6.5kg Moving Coil Weight and Dia. 230 mm Moving Coil Size 7 Motorcycle and Electric Vehicle Vibration Testing Machine with 25mm Impact Displacement 6.5kg Moving Coil Weight and Dia. 230 mm Moving Coil Size 8
Our Services
  • High quality guarantee with 12-month warranty
  • Professional documentation and customized packing with pre-shipment photos
  • Prompt response within 48 hours and solutions within 3 working days
  • Dedicated engineering support for after-sales service
Company Profile
With 28 years of experience, we specialize in simulation environmental testing equipment and mechanical vibration/shock testing machines. Our CE-certified lab package simulated vibration test equipment with slip table represents our flagship product line.
Motorcycle and Electric Vehicle Vibration Testing Machine with 25mm Impact Displacement 6.5kg Moving Coil Weight and Dia. 230 mm Moving Coil Size 9 Motorcycle and Electric Vehicle Vibration Testing Machine with 25mm Impact Displacement 6.5kg Moving Coil Weight and Dia. 230 mm Moving Coil Size 10 Motorcycle and Electric Vehicle Vibration Testing Machine with 25mm Impact Displacement 6.5kg Moving Coil Weight and Dia. 230 mm Moving Coil Size 11 Motorcycle and Electric Vehicle Vibration Testing Machine with 25mm Impact Displacement 6.5kg Moving Coil Weight and Dia. 230 mm Moving Coil Size 12
Contact us today to discuss your Motorcycle and Electric Vehicle Vibration Test Machine requirements.
