High Performance Vibration Testing Machine with 1000m/s2 Max Acceleration 6.5kg Moving Coil and 25mm Impact Displacement

1
MOQ
High Performance Vibration Testing Machine with 1000m/s2 Max Acceleration 6.5kg Moving Coil and 25mm Impact Displacement
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
周波数範囲: 5Hz～3500Hz
最大加速: 1000m/s2
最大速度: 1.6m/s
影響の変位: 25mm
可動コイル重量: 6.5kg
振動方向: 垂直および水平
振動波: シヌス ランダム ショック
コイルサイズの移動: dia。 230 mm
定格正弦力: 6000N
評価される任意力: 6000N
定数加速: 1000m/s2
定格速度: 1.6m/s
定数移動量: 25mm
最大負荷: 180kg
パワータイプ: 電子
ハイライト:

1000m/s2 Max Acceleration Vibration Testing Machine

,

6.5kg Moving Coil Vibration Test System

,

25mm Impact Displacement Electrodynamic Vibration Shaker
基本情報
起源の場所: 中国広州
ブランド名: ASLI
モデル番号: ES-6
お支払配送条件
製品の説明
5-500Hz Horizontal Vertical Vibration Test Machine
Product Overview
The 5-500Hz Horizontal Vertical Vibration Test Machine performs sinusoidal vibration tests, broadband random vibration tests, and classic pulse tests (half sinusoid, trapezoid, back peak saw tooth) including shock response spectrum testing. When combined with a climate chamber, it enables comprehensive mechanical and environmental condition testing.
This high-frequency vibration test system is extensively used in defense, weapons, aerospace, communications, electronics, appliances, transportation, and household appliance industries. Custom configurations are available to meet specific environmental testing requirements.
Technical Specifications
Model Rated Sine Force (N) Rated Random Force (N) Frequency Range (Hz) Rated Acceleration (m/s²) Rated Speed (m/s) Rated Displacement (p-p)mm Max. Loading (Kg) Moving Coil (Kg) Dimension of Moving Coil (mm)
ES-3 3000 3000 3-3500 1000 1.6 25 100 3.5 Φ150
ES-3a 3000 3000 3-3500 400 1.6 40 120 9 Φ230
ES-6 6000 6000 3-3500 1000 1.6 25 180 6.5 Φ230

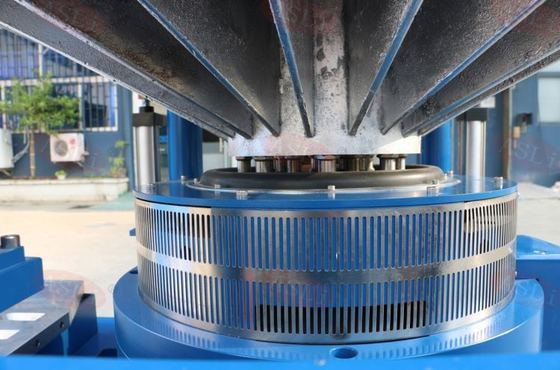

Vertical Expander Features
The VT vertical extended-bench features precision-calculated, specially designed clamps that deliver optimal performance through perfect structure, high-quality materials, and superior workmanship.
High Performance Vibration Testing Machine with 1000m/s2 Max Acceleration 6.5kg Moving Coil and 25mm Impact Displacement 0

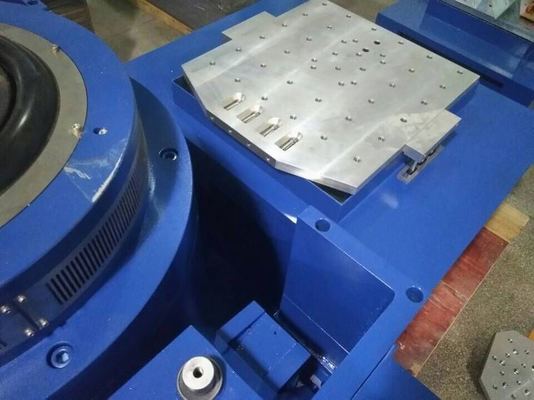

Horizontal Expander Features
  • Small loading bench enables higher acceleration and working frequency
  • Improved loading capacity and overall machine performance
  • Integral horizontal bench and vibration bench design for easy installation and adjustment
  • Static pressure V-shape track with slope-resistant and bias-loading resistant capacity
  • Built-in oil pump with excellent structure and easy operation
High Performance Vibration Testing Machine with 1000m/s2 Max Acceleration 6.5kg Moving Coil and 25mm Impact Displacement 1
Product Gallery

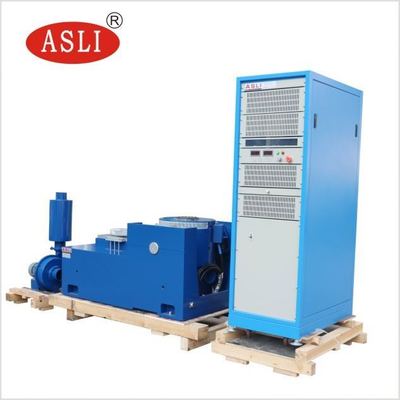

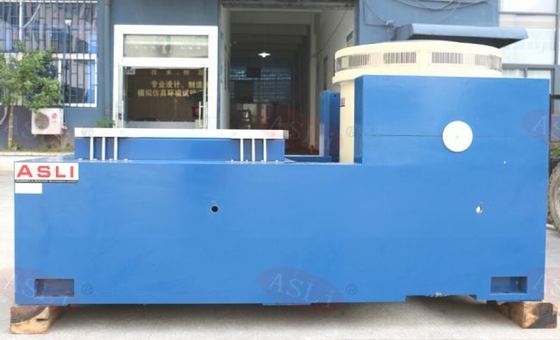

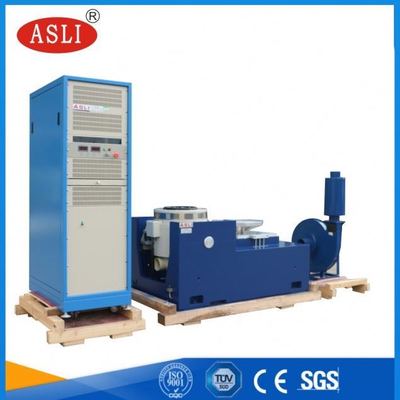

High Performance Vibration Testing Machine with 1000m/s2 Max Acceleration 6.5kg Moving Coil and 25mm Impact Displacement 2 High Performance Vibration Testing Machine with 1000m/s2 Max Acceleration 6.5kg Moving Coil and 25mm Impact Displacement 3 High Performance Vibration Testing Machine with 1000m/s2 Max Acceleration 6.5kg Moving Coil and 25mm Impact Displacement 4
Our Service
  • High quality guarantee
  • Professional documentation with shipment
  • Custom packing available with pre-shipment photos
  • 48-hour response time with solutions within 3 working days
  • Professional engineering after-service support
  • 12-month warranty period
Company Profile
With 28 years of experience, we specialize in simulation environmental testing equipment and mechanical vibration/shock testing machines. Our lab package simulated vibration test equipment with slip table is CE certified and represents our flagship product line.
High Performance Vibration Testing Machine with 1000m/s2 Max Acceleration 6.5kg Moving Coil and 25mm Impact Displacement 5
