High Frequency Electrodynamic Vibration Shaker with PC Control 20000N Rated Force and Customized Support

1
MOQ
High Frequency Electrodynamic Vibration Shaker with PC Control 20000N Rated Force and Customized Support
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
振動方法: サイン＆ランダム振動
定格正弦力: 20000n
評価される任意力: 20000n
周波数範囲: 3〜3500Hz
マックス。加速度: 100g
定格速度: 2.0m/s
定数移動量: 51mm
制御方法: PC
振動方向: 垂直振動
電源: AC380V
最高。ローディング: 300kg
可動コイル重量: 30kg
コイルの寸法の移動: Φ320
軸共振周波数: 高い
冷却効果: 強化
ハイライト:

PC Control Electrodynamic Vibration Shaker

,

20000N Rated Force Vibration Testing Machine

,

Customized Support Vibration Test System
基本情報
起源の場所: 中国広州
ブランド名: ASLI
モデル番号: ES-20
お支払配送条件
製品の説明
High Frequency Vertical and Horizontal Electrodynamics Vibration Testing Machine
Product Description
Our High Frequency Vibration Test Machine series products incorporate advanced technologies including double-magnetic circuit structure, self-generated skeleton action circles, airborne support, roller bearings with linear guidance, and trunnion isolation. These machines perform sinusoidal vibration tests in X, Y, Z three-axis configurations and broadband random vibration tests, along with classical pulse (half-sine, trapezoidal, sawtooth wave) and shock response spectrum testing. Widely used in defense, weapons, aviation, aerospace, communications, electronics, appliances, and other industries.
High Frequency Electrodynamic Vibration Shaker with PC Control 20000N Rated Force and Customized Support 0
Technical Specifications
Model Rated Sine Force (N) Rated Random Force (N) Frequency Range (Hz) Rated Acceleration (m/s²) Rated Speed (m/s) Rated Displacement (p-p) mm Max. Loading (Kg) Moving Coil (Kg) Dimension of Moving Coil (mm)
ES-1100010003-35004001.225702.5Φ150
ES-2200020003-35008001.625702.5Φ150
ES-2a200020003-35003001.640708Φ230
ES-3300030003-350010001.6251003.5Φ150
ES-3a300030003-35004001.6401209Φ230
ES-6600060003-350010001.6251806.5Φ230
ES-6a600060003-350010001.65125012Φ230
ES-1010000100003-300010001.85127014Φ240
ES-2020000200003-300010001.85130030Φ320
ES-3030000300003-280010001.85145040Φ450
ES-4040000400003-280010001.85150050Φ450
ES-5050000500003-270010001.85175050Φ450
ES-6060000600003-270010001.85175060Φ450
ES-1001000001000003-250010001.851100090Φ450
ES-1201200001200003-220010001.851110090Φ500
ES-1601600001600003-210010001.8511500150Φ600
ES-2002000002000003-200010001.8512500200Φ650
ES-3503500003500003-170010001.8514500300Φ87
Key Features
  • Well-designed dynamic circle skeleton with higher stage axial resonance frequency
  • Double-magnetic circuit design with low magnetic flux leakage and compact structure
  • Rocker rod roller bearings with straight and import-oriented composite body stiffness orientation
  • Trunnion isolation foundation for convenient mobile installation
  • Advanced moving system technology ensuring high reliability
  • Enhanced cooling effect with new duct design
  • Improved static and dynamic stiffness for better low-frequency performance

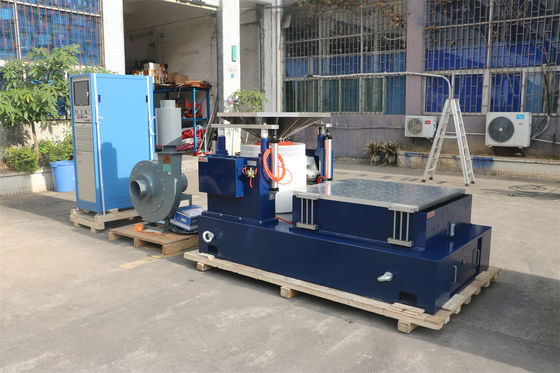

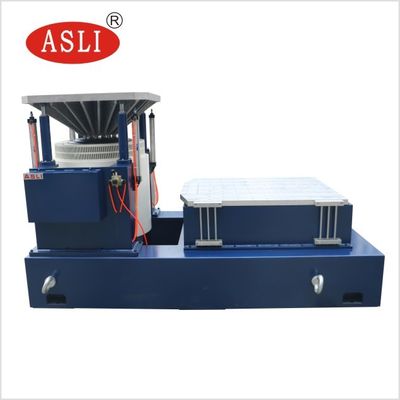

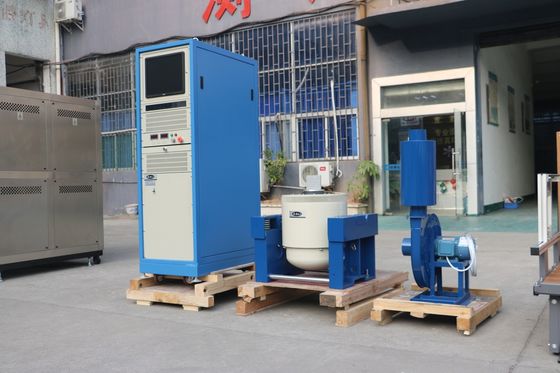

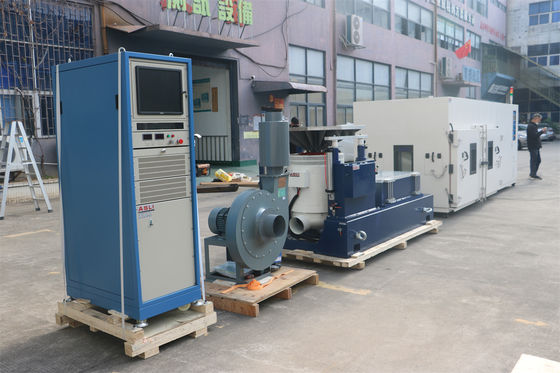

High Frequency Electrodynamic Vibration Shaker with PC Control 20000N Rated Force and Customized Support 1 High Frequency Electrodynamic Vibration Shaker with PC Control 20000N Rated Force and Customized Support 2 High Frequency Electrodynamic Vibration Shaker with PC Control 20000N Rated Force and Customized Support 3 High Frequency Electrodynamic Vibration Shaker with PC Control 20000N Rated Force and Customized Support 4
Packaging & Shipping
Certification: China official 3rd party calibration report, CE certification
Packaging Process:
  1. PP film first layer
  2. Vacuum packaging
  3. Additional PP film layer
  4. 10mm thickness PU foam for impact protection
  5. Reinforced plywood case
  6. Standard ASLI case marking

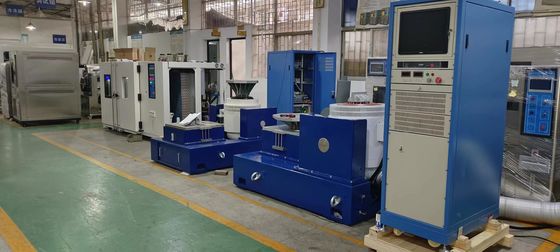

High Frequency Electrodynamic Vibration Shaker with PC Control 20000N Rated Force and Customized Support 5
Our Services
  • High quality guarantee
  • Professional shipping documentation
  • Custom packaging with pre-shipment photos
  • 48-hour response time with solutions within 3 working days
  • Professional engineering after-service
  • 12-month warranty period

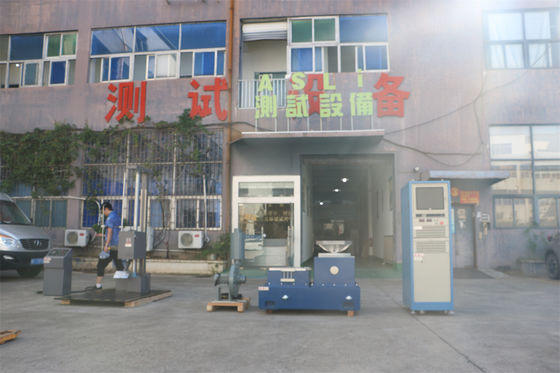

High Frequency Electrodynamic Vibration Shaker with PC Control 20000N Rated Force and Customized Support 6 High Frequency Electrodynamic Vibration Shaker with PC Control 20000N Rated Force and Customized Support 7
Company Information
ASLI is a 28-year veteran in testing equipment manufacturing, specializing in simulation environmental testing equipment and mechanical vibration/shock testing machines. Our High Frequency Vertical and Horizontal Electrodynamics Vibration Testing Machine is a star product with CE certification.
High Frequency Electrodynamic Vibration Shaker with PC Control 20000N Rated Force and Customized Support 8
Frequently Asked Questions
1. Are you a trading company or manufacturer?
We are a factory with 28 years of experience in test instruments and 4 years of exporting experience.
2. What is your typical delivery time after order placement?
Approximately 20 days for standard orders. For available stock items, we can arrange shipment within 3 days. Lead times may vary based on specific items and quantities.
3. What is your warranty and after-sales service policy?
We provide a 12-month warranty. After warranty expiration, our professional after-sales team continues to offer technical support and timely problem resolution.
High Frequency Electrodynamic Vibration Shaker with PC Control 20000N Rated Force and Customized Support 9
Please contact us for any inquiries about our High Frequency Vertical and Horizontal Electrodynamics Vibration Testing Machine.
