Water Proof Watch Pressure Tester

1
MOQ
Water Proof Watch Pressure Tester
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
内部寸法: W1000×H1000×D1000mm
外部次元: W1600×H1950×D1450mm
重さ: 400kg
空気スイッチ: 63A
電源: AC220V 50/60Hz
音量: 1000L
水温: 環境温度または (RT+15 ℃) ~ 70 ℃ (オプション)
IPX1の飛沫量: 1.0+0.5mm/分
IPX1試験期間: 10min
IPX2の飛沫量: 3.0+0.5mm/分
IPX2テスト期間: 4 * 2.5分、10分
IPX3の水流量: 1.12~2.50L/分
IPX4の水流量: 1.61~2.50L/分
IPX5水流: 12.5L/分
IPX6水流: 100L/min
ハイライト:

waterproof watch pressure tester

,

watch pressure test chamber

,

waterproof watch testing equipment

基本情報
起源の場所: 広東省、中国
ブランド名: ASLI
証明: CE,Third party calibration qualification report
モデル番号: RT-1000A
お支払配送条件
製品の説明

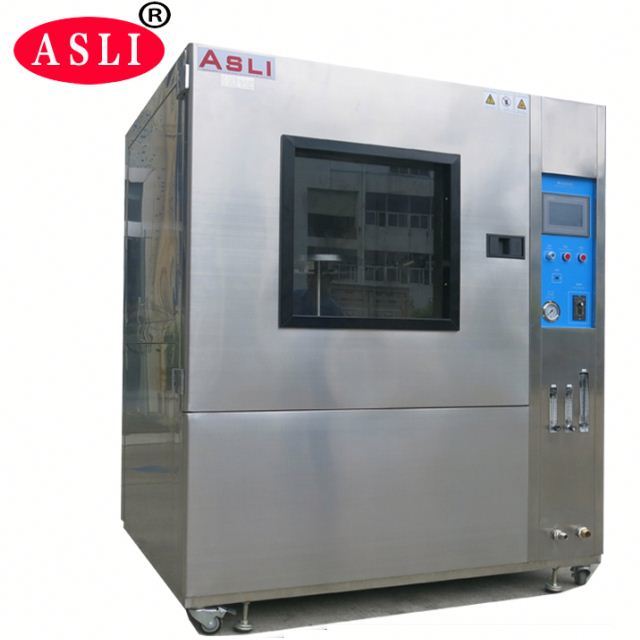

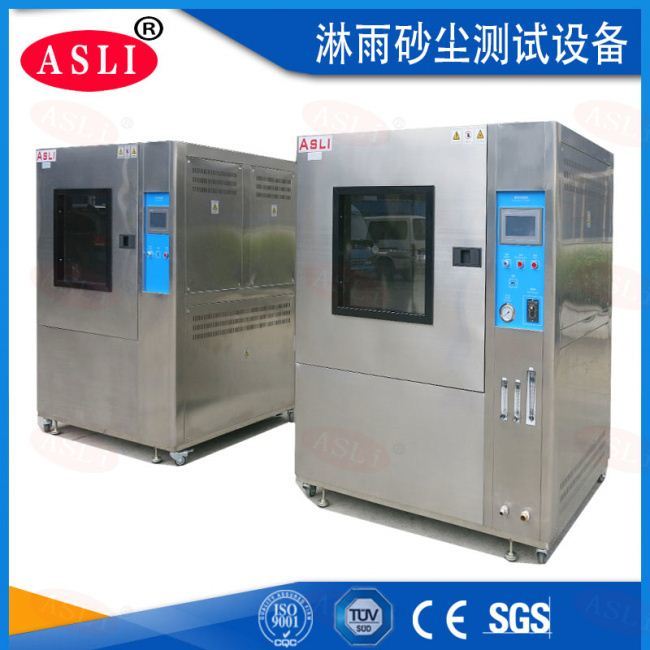

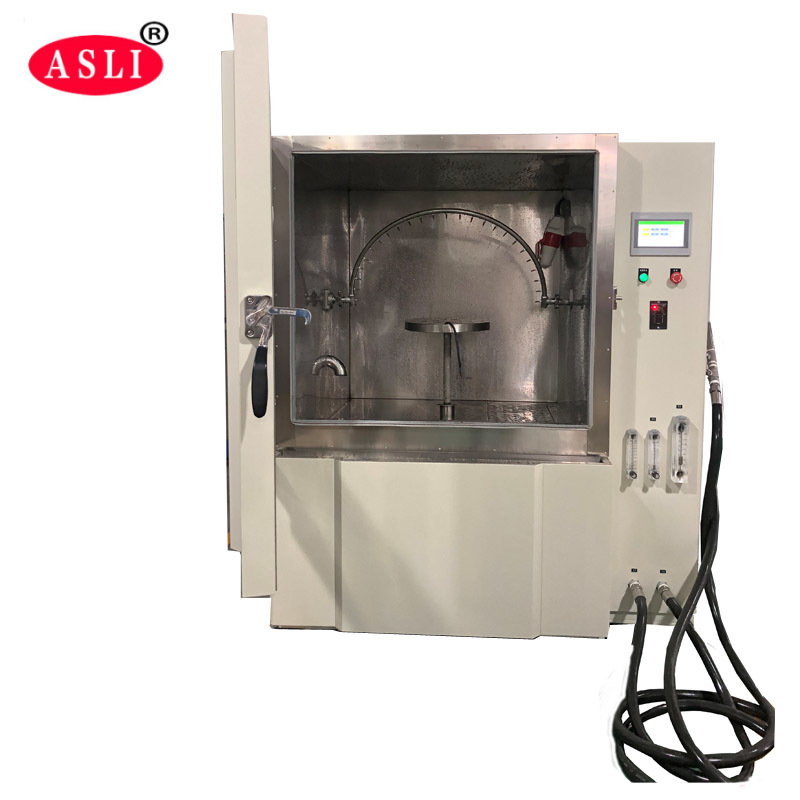

Water Proof Watch Pressure Tester
The Water Resistance Chamber is designed to test the waterproof effectiveness of electronic devices, automotive components, and communication equipment. It simulates rainfall conditions to evaluate waterproof performance and classify performance degradation.
Main Technical Parameters
Model RT-1000A
Specimens Flammable, explosive, or volatile material samples. Prohibited for corrosive substances, biological tests, and strong electromagnetic emission sources.
Volume 1000 L
Inner Dimension W1000×H1000×D1000 mm
External Dimension W1600×H1950×D1450 mm
Weight 400kg
Air Switch 63A
Power Supply AC220V 50/60HZ Single Phase Three Lines 6 m² Copper Wire
Performance Specification
Using Environmental Temperature: 5~30°C, Humidity <85% R.H. (Without load)
Water Temperature 1. Environmental temperature (uncontrolled)
2. Optional: (RT+15°C) ~ 70°C
IPX Testing Specifications

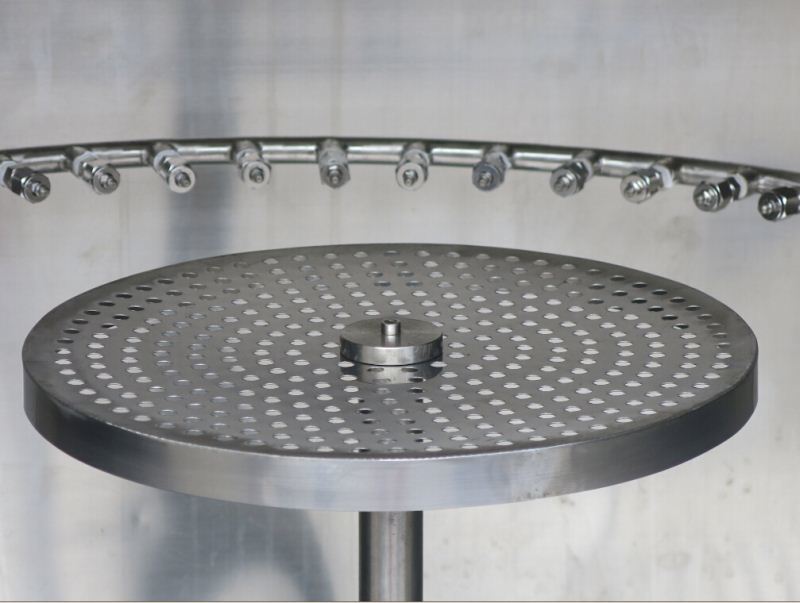

  • IPX1: Vertical drop water test - 1r/min rotation, ≤200mm distance, 1.0±0.5mm/min droplets, 10min duration
  • IPX2: 15° tilt drop test - four positions tested, 3.0±0.5mm/min droplets, 10min total duration
  • IPX3: 400mm swinging radius, 1.12-2.50L/min flow, 16 holes (0.4mm), 10min test with 90° rotation at 5min
  • IPX4: 400mm swing pipe, 1.61-2.50L/min flow, 23 holes (0.4mm)
  • IPX5: 12.5L/min flow, 6.3mm holes, ≥3min test
  • IPX6: 100L/min flow, 12.5mm holes, ≥3min test
Compliance Standards
JIS-D0203, IEC-60529, GB/T 2423.38 2006, IEC 60068-2.18:2000, GB4208-2008, IEC60529-2001
Water Proof Watch Pressure Tester 0 Water Proof Watch Pressure Tester 1
For any questions or requirements regarding the Water Proof Watch Pressure Tester, please don't hesitate to contact us.
